− 39 −

GERMAN FRENCH ITALIAN SPANISHENGLISH

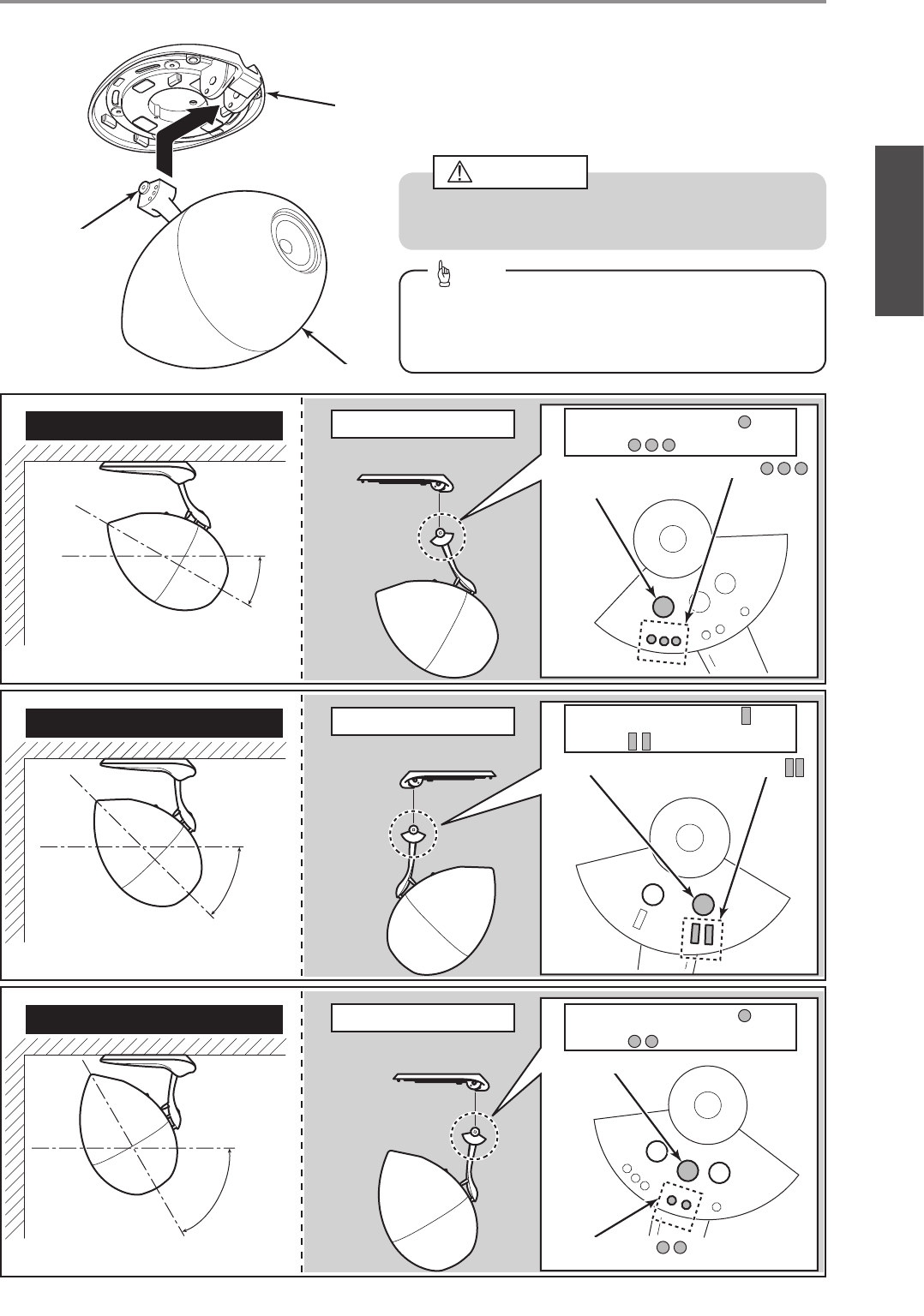

Alignment mark：

Alignment mark

：

Alignment mark：

−30°

−45°

−60°



Reverse speaker arm type

If the speaker angle is -30°

Speaker arm : Reverse

If the speaker angle is -45°

Speaker arm : Reverse

If the speaker angle is -60°

Speaker arm : Reverse

Fine adjustment range：−45° ～−20°

(

󰜏

Refer to P.32.

)

Fine adjustment range：−60° ～−35°

(

󰜏

Refer to P.32.

)

Fine adjustment range：−75° ～−50°

(

󰜏

Refer to P.32.

)

󰝟

Speaker

Speaker base

Speaker arm

Be careful not to get your hand or fingers caught in the

movable part of the speaker arm.

Caution

Fixing holes

：

Side with mark

（

Mark

：）

Fixing holes

：

Side with mark

（

Mark

：

）

Fixing holes

：

Side with mark

（

Mark

：

）

The position of the fixing hole (mark) is important when

assembling the speaker and the speaker arm. For

details, refer to “Assembling the speaker” on P.46.

Tip

Fixing holes
