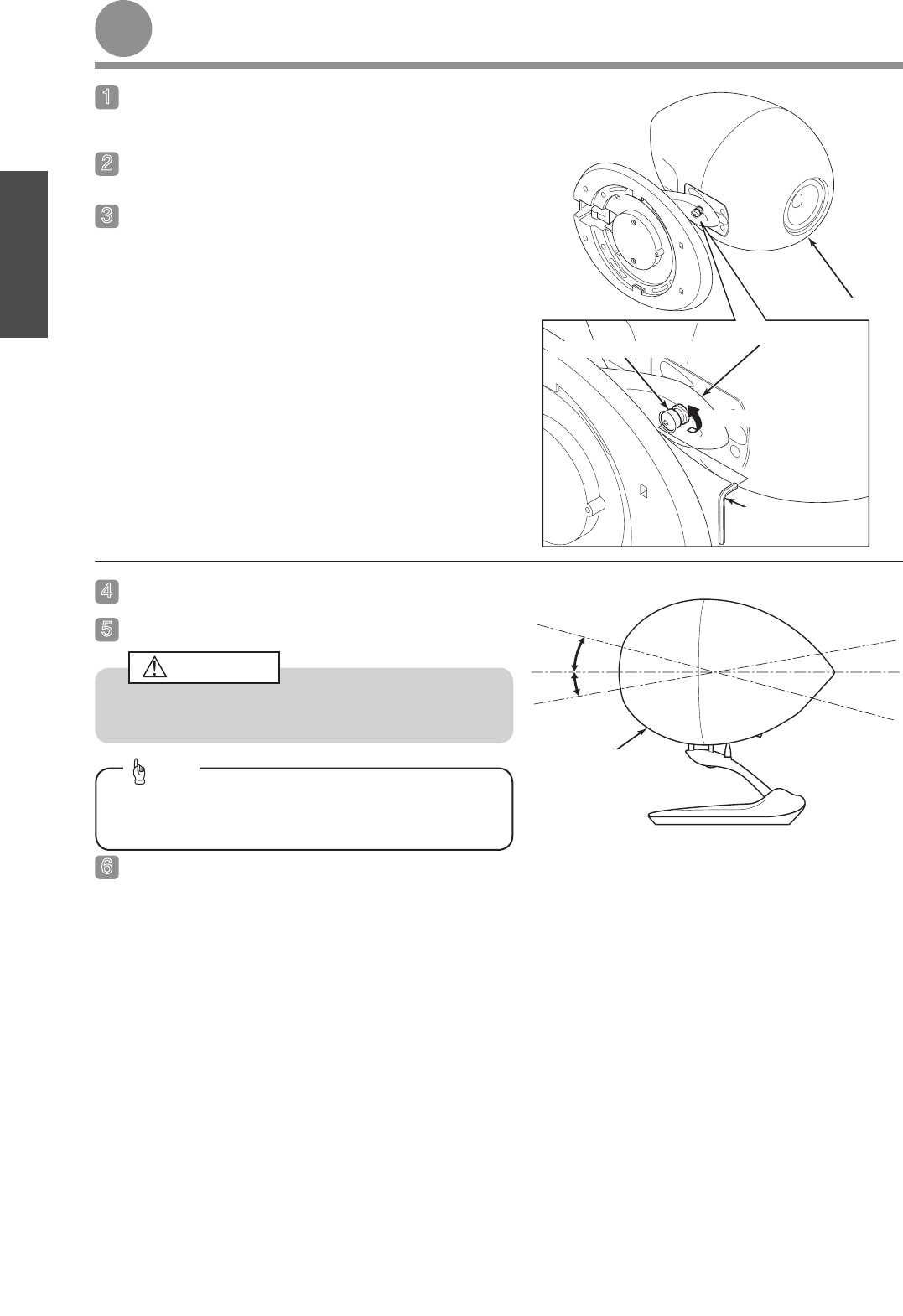

Adjusting the speaker angleAdjusting the speaker angle

Speaker angle adjustment nut



 Loosen the speaker angle adjustment nut on the under

side of the speaker arm.



 Stand the speaker upright.



 Adjust the speaker to the desired angle.



 Spread a soft cloth over the floor in order to prevent

damaging the surface of the speaker.



 Place the speaker on its side.

Be careful not to let the speaker stand fall over while

adjusting the angle.

Caution



 Securely tighten the speaker angle adjustment nut.

󰝟

Speaker

＋15°

－10°

󰝟

Speaker

Loosen

Speaker arm

󰝡Hexagonal wrench

(large)

The angle of the speaker can be adjusted within the

range of +15° to -10°.
